Optične komunikacije
Multi Mode - 62,5/125 instalacijski kabli

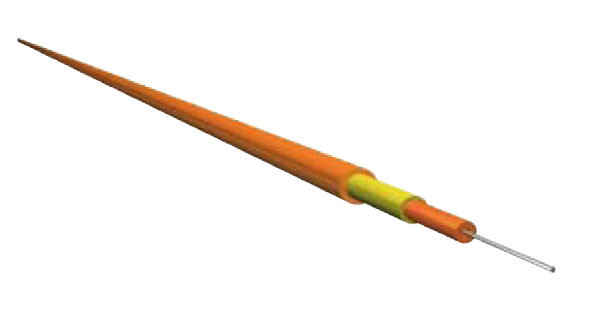

Notranji instalacijski kabel - 1 vlakno - simplex (Huber&Suhner)
01-G62/CWJH-D27,1-fiber, 62.5/125 µm, 2.7 mm, jacket color: orange
Naziv:
01-G62/CWJH-D27,1-fiber, 62.5/125 µm, 2.7 mm, jacket color: orange
Design:
|
Tube |
Semi-tight tubes 0.9mm |
|
Strain relief |
Aramide yarn |
|
Cable jacket |
LSFH |
|
Jacket colour |
Orange |
Properties:
Metal free indoor cable
Each fiber strain relieved
For direct connector assembly with strain relief
Tube can be stripped up to 2 m
Halogen free and non-corrosive fire gases
Jacket material according to UL 94V-0
Low fire load for high safety requirements
Prenos:
- Simplex_Dsheet_en.pdf (PDF 33 kb)

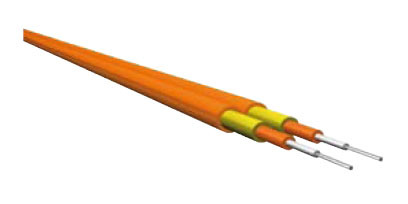

Notranji instalacijski kabel - 2 vlakni - duplex (Huber&Suhner)
02-G62/CWJH-D20 ,2-fiber, 62.5/125 µm, 2.0x4.1 mm, jacket color: orange
Naziv:
02-G62/CWJH-D20 ,2-fiber, 62.5/125 µm, 2.0x4.1 mm, jacket color: orange
Design:
|
Tube |
2 simplex cables with semi-tight tubes 0.9 mm |
|
Strain relief |
Aramide yarn |
|
Cable jacket |
LSFH |
|
Jacket colour |
Orange |
Properties:
Metal free indoor cable
Each fiber strain relieved
For direct connector assembly with strain relief
Tube can be stripped up to 1 m in one piece
Tight bending radii
Low smoke, halogen free and self-extinguishing
Jacket material according to UL 94V-0
Low fire load for high safety requirements
Prenos:
- Duplex_Dsheet_en.pdf (PDF 41 kb)

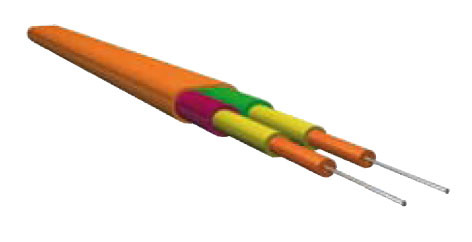

Notranji instalacijski kabel - 2 vlakni z DTA izolacijo (Huber&Suhner)
02-G62/CWJH-AD27,2-fiber, 62.5/125 µm, 3.5x6.2 mm, jacket color: orange
Naziv:
02-G62/CWJH-AD27,2-fiber, 62.5/125 µm, 3.5x6.2 mm, jacket color: orange
Design:
|
Tube |
2 semi-tight tubes 0.9 mm |
|
Strain relief |
Aramide yarn |
|
Cable jacket |
LSFH |
|
Jacket colour |
Orange |
Properties:
Metal free indoor cable
Each fiber strain relieved
For direct connector assembly with strain relieved
Tube can be stripped up to 1 m in one piece
Low smoke, halogen free and self-extinguishing
Jacket material according to UL 94V-0
Prenos:
- Duplex_DTA_Dsheet_en.pdf (PDF 52 kb)

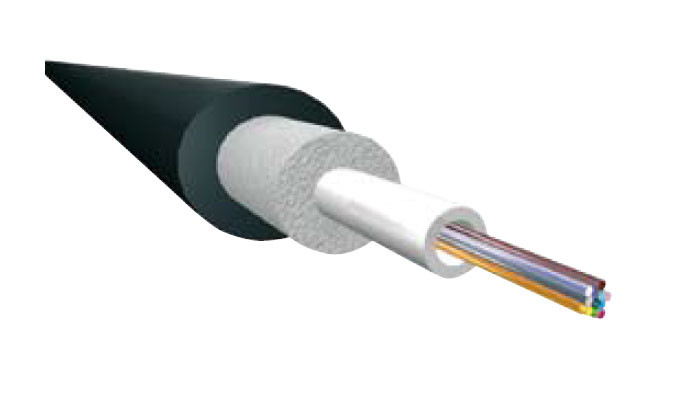

Notranji in zunanji instalacijski kabel - 6 vlaken (Huber&Suhner)
06-6G62/W(ZNG)Y-G85,6-fiber, 62.5/125 µm, 8.5 mm, jacket color: PE black
Naziv:
06-6G62/W(ZNG)Y-G85,6-fiber, 62.5/125 µm, 8.5 mm, jacket color: PE black
Design:
Multi-fiber loose tube
Jelly-filled with 6 fibers
Strain relief and rodent protection: Glass-roving
Diameter: 8,5mm
Jacket material: PE or LSFHTM
Jacket colour: black
Properties:
Metal free outdoor cable
Rodent-protected, glass-armoured
For use in ducts and unprotected environment
High chemical resistance against acids and alkalies
For high mechanical requirements
Halogen free and non-corrosive fire gases
Longitudinal and transversal watertight cable
Suitable for MASTERLINE applications
Prenos:

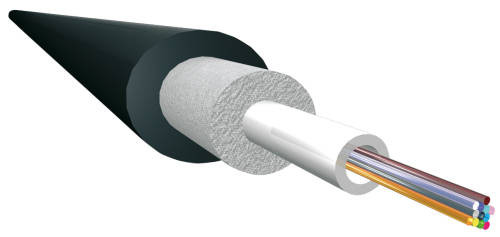

Notranji in zunanji instalacijski kabel - 12 vlaken (Huber&Suhner)
12-12G62/W(ZNG)Y-G85,12-fiber, 62.5/125 µm, 8.5 mm, jacket color: PE black
Naziv:
12-12G62/W(ZNG)Y-G85,12-fiber, 62.5/125 µm, 8.5 mm, jacket color: PE black
Design:
Multi-fiber loose tube
Jelly-filled with 12 fibers
Strain relief and rodent protection: Glass-roving
Diameter: 8,5mm
Jacket material: PE or LSFHTM
Jacket colour: black
Properties:
Metal free outdoor cable
Rodent-protected, glass-armoured
For use in ducts and unprotected environment
High chemical resistance against acids and alkalies
For high mechanical requirements
Halogen free and non-corrosive fire gases
Longitudinal and transversal watertight cable
Suitable for MASTERLINE applications
Prenos:
- HS_ZNG_Singletube_up_to_12fibers.pdf (PDF 46 kb)
Zunanji instalacijski kabel - 24 vlaken (Huber&Suhner)
24-12G62/W(ZNG)Y-G94,24-fiber, 62.5/125 µm, 9.4x8.8 mm, jacket color: PE black
Naziv:
24-12G62/W(ZNG)Y-G94,24-fiber, 62.5/125 µm, 9.4x8.8 mm, jacket color: PE black
Design:
Two multi-fiber loose tubes
Jelly-filled with 12 fibers
2 ripcords
Strain relief and rodent protection: Glass-armouring
Jacket material: PE or LSFHTM
Jacket colour: black
Properties:
Metal free indoor and outdoor cable
Rodent-protected, glass-armoured
For use in ducts and unprotected environment
Ripcord for easy jacket removal
Low smoke, halogen free and self-extinguishing
Longitudinal and transversal watertight cable
Suitable for MASTERLINE applications
Prenos:
- HS_ZNG_Twintube_up_to_24fibers.pdf (PDF 61 kb)
